ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC28L05-TPIC REG LINEAR 5V 100MA SOT23 |
4,756 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 1.2V @ 100mA | 100mA | 20 µA | - | 60dB ~ 35dB (100Hz ~ 10kHz) | - | Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23 |
|

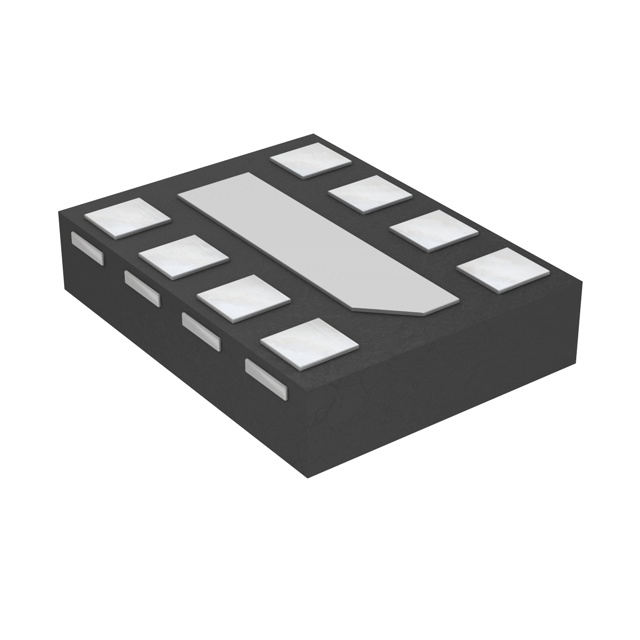

AP7345D-1818RH4-7IC REG LIN 1.8V/1.8V 300MA 8DFN |
4,157 | - |
|
Datasheet | - | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.25V | 1.8V, 1.8V | - | 0.39V @ 300mA, 0.39V @ 300mA | 300mA, 300mA | 140 µA | 70 µA | 75dB (1kHz) | Current Limit, Enable | Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | X2-DFN1612-8 |
|
|
AP7345D-2818RH4-7IC REG LIN 2.8V/1.8V 300MA 8DFN |
1,519 | - |
|
Datasheet | - | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.25V | 2.8V, 1.8V | - | 0.3V @ 300mA, 0.39V @ 300mA | 300mA, 300mA | 140 µA | 70 µA | 75dB (1kHz) | Current Limit, Enable | Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | X2-DFN1612-8 |
|

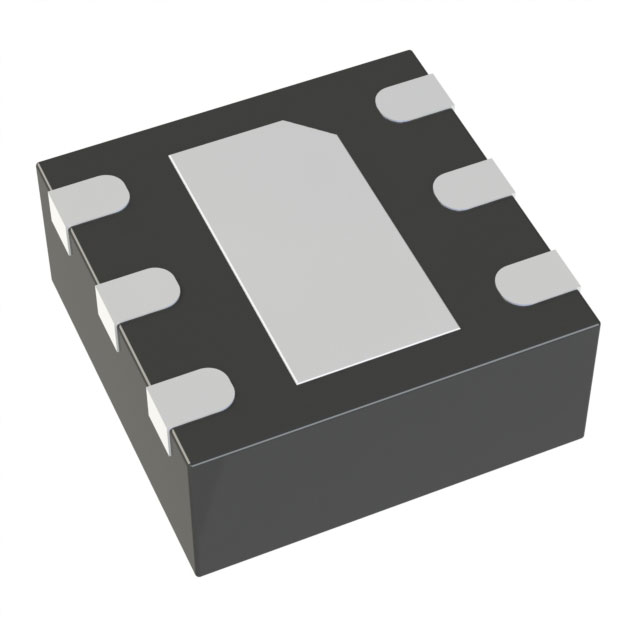

MIC47050-1.2YML-TRVAOIC REG LINEAR 1.2V 500MA 6MLF |
2,123 | - |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 1.2V | - | 0.12V @ 500mA | 500mA | 15 µA | - | 50dB ~ 37dB (10kHz ~ 100kHz) | Enable, Power Good | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
|
MIC47050-1.8YML-TRVAOIC REG LINEAR 1.8V 500MA 6MLF |
1,060 | - |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.12V @ 500mA | 500mA | 15 µA | - | 50dB ~ 37dB (10kHz ~ 100kHz) | Enable, Power Good | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
MIC5233YM5-TRVAOIC REG LIN POS ADJ 100MA SOT23-5 |
1,930 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 36V | 1.24V | 20V | 0.45V @ 100mA | 100mA | 35 µA | 2 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
XC6224A121MR-GIC REG LINEAR 1.2V 150MA SOT25 |
1,469 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.2V | - | 0.5V @ 150mA | 150mA | 77 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6224A12BMR-GIC REG LINEAR 1.25V 150MA SOT25 |
4,557 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.25V | - | 0.5V @ 150mA | 150mA | 77 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6224A181MR-GIC REG LINEAR 1.8V 150MA SOT25 |
1,377 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.43V @ 150mA | 150mA | 77 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6224A18BMR-GIC REG LINEAR 1.85V 150MA SOT25 |
4,216 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.85V | - | 0.43V @ 150mA | 150mA | 77 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6224A191MR-GIC REG LINEAR 1.9V 150MA SOT25 |
3,949 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.9V | - | 0.43V @ 150mA | 150mA | 77 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6224A19BMR-GIC REG LINEAR 1.95V 150MA SOT25 |
2,099 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.95V | - | 0.43V @ 150mA | 150mA | 77 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
XC6224A0817R-GIC REG LIN 0.8V 150MA USPN-4B02 |
1,649 | - |
|
Datasheet | - | 4-XFDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 0.8V | - | - | 150mA | 77 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | USPN-4B02 |
|
|
XC6224B121MR-GIC REG LINEAR 1.2V 150MA SOT25 |
4,946 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.2V | - | 0.5V @ 150mA | 150mA | 77 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6224B12BMR-GIC REG LINEAR 1.25V 150MA SOT25 |
2,783 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.25V | - | 0.5V @ 150mA | 150mA | 77 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6224B181MR-GIC REG LINEAR 1.8V 150MA SOT25 |
2,077 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.43V @ 150mA | 150mA | 77 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6224B18BMR-GIC REG LINEAR 1.85V 150MA SOT25 |
1,036 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.85V | - | 0.43V @ 150mA | 150mA | 77 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6224B191MR-GIC REG LINEAR 1.9V 150MA SOT25 |
1,952 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.9V | - | 0.43V @ 150mA | 150mA | 77 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6224B19BMR-GIC REG LINEAR 1.95V 150MA SOT25 |
1,649 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.95V | - | 0.43V @ 150mA | 150mA | 77 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
XC6224B13BNR-GIC REG LINEAR 1.35V 150MA SSOT24 |
1,393 | - |
|
Datasheet | - | SC-82 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.35V | - | 0.5V @ 150mA | 150mA | 77 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSOT-24 |
