ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSCMJJN001ND2A3TRUSTABILITY PRESSURE SENSOR |
2,952 | - |
|
Datasheet | TruStability® SSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | 0.04PSI (0.25kPa) | I2C | 0.165 V ~ 3.135 V | ±0.25% | 3V ~ 3.6V | Male - 0.8" (20.32mm) Tube | Barbed | Amplified Output, Temperature Compensated | - | 0.12PSI (0.8kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
SSCDJJN002NDAA5TRUSTABILITY PRESSURE SENSOR |
3,452 | - |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Industrial Automation, Medical Ventilation | Differential | -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pins | 9.75PSI (67.25kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
SSCDJJN005NGAA3TRUSTABILITY PRESSURE SENSOR |
3,407 | - |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Industrial Automation, Medical Ventilation | Gauge | 0.18PSI (1.25kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.09" (2.29mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pins | 9.75PSI (67.25kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
SSCDJJN002NGAA5TRUSTABILITY |
1,681 | - |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Industrial Automation, Medical Ventilation | Gauge | 0.07PSI (0.5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pins | 9.75PSI (67.25kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
SSCDJJN2.5MDAA5TRUSTABILITY PRESSURE SENSOR |
1,183 | - |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Industrial Automation, Medical Ventilation | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pins | 9.79PSI (67.50kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
SSCDJJN004NDAA3TRUSTABILITY PRESSURE SENSOR |
3,873 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

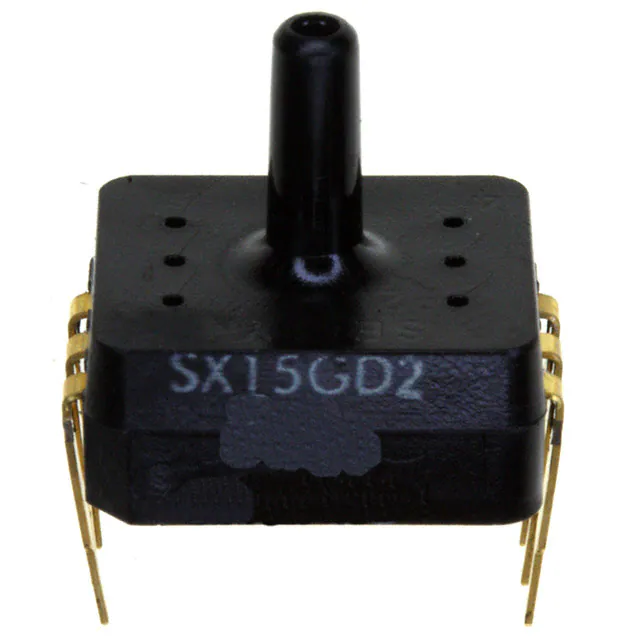

SX15GD2SENSOR 15PSIG 0.11" .11V 6DIP |
2,816 | - |
|
Datasheet | - | 6-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | Male - 0.11" (2.67mm) Tube | Barbless | - | - | 45PSI (310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
|
SX01DP1SENSOR 1PSID 1.8" .02V |
1,461 | - |
|
Datasheet | - | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (5V) | ±0.5% | 12V | Male - 1.8" (0.7mm) Tube | Barbed | - | - | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SX15AP1SENSOR 15PSIA 1.8" .11V |
1,859 | - |
|
Datasheet | - | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | Male - 1.8" (0.7mm) Tube | Barbed | - | - | 45PSI (310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SCC05GD2SENSOR 5PSIG 0.11" .065V |
3,911 | - |
|
Datasheet | SCC | 6-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 25 mV ~ 65 mV | ±0.5% | - | Male - 0.11" (2.67mm) Tube | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
