ELECTRONIC COMPONENTS
Single Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5189/TRDIODE GEN PURP 500V 3A |
8,736 | - |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 µA @ 500 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
1N5420E3/TRDIODE GEN PURP 600V 3A B AXIAL |
3,106 | - |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | - | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
1N5188/TRDIODE GEN PURP 400V 3A |
3,323 | - |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 2 µA @ 400 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
1N5195/TRDIODE GEN PURP 180V 200MA DO35 |
5,300 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 180 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 180 V | - | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
1N6620E3/TRDIODE GEN PURP 200V 1.2A A AXIAL |
6,529 | - |
|
Datasheet | - | Axial | Tape & Reel (TR) | Active | Standard | 200 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | - | - | - | Through Hole | A, Axial | -65°C ~ 150°C |
|
|
JAN1N5809USDIODE GEN PURP 100V 6A B SQ-MELF |
6,745 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 100 V | 6A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|

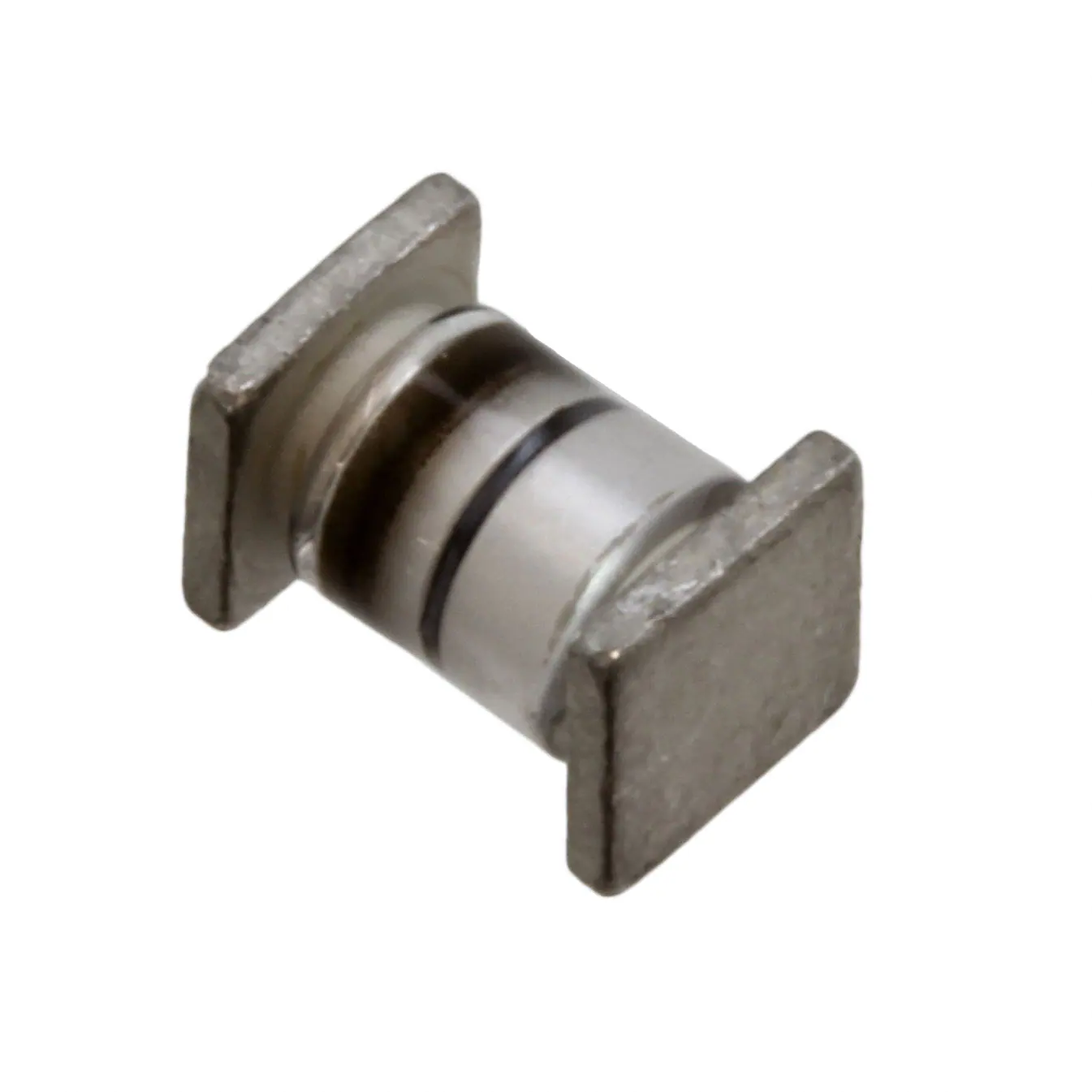

JAN1N5811USDIODE GEN PURP 150V 6A B SQ-MELF |
4,141 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 150 V | 6A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 150 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
CD1A60DIODE SCHOTTKY 60V 1A DIE |
9,923 | - |
|
Datasheet | - | Die | Tape & Reel (TR) | Active | Schottky | 60 V | 1A | 750 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | - | Military | MIL-PRF-19500/586 | Surface Mount | Die | -55°C ~ 125°C |
|
|
1N6858-1/TRDIODE SCHOTTKY 70V 75MA DO35 |
4,207 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 70 V | 75mA | 650 mV @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | 4.5pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
JANTXV1N4246DIODE GEN PURP 400V 1A AXIAL |
8,777 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 400 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 1 µA @ 400 V | - | Military | MIL-PRF-19500/286 | Through Hole | A, Axial | -65°C ~ 175°C |
