ELECTRONIC COMPONENTS
Single Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTXV1N4246/TRDIODE GEN PURP 400V 1A |
4,194 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 1 µA @ 400 V | - | Military | MIL-PRF-19500/286 | Through Hole | A, Axial | -65°C ~ 175°C |
|
JAN1N5620US/TRDIODE GEN PURP 800V 1A D-5A |
5,645 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 800 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 800 V | - | Military | MIL-PRF-19500/427 | Surface Mount | D-5A | -65°C ~ 200°C |
|
JAN1N5811US/TRDIODE GEN PURP 150V 6A B SQ-MELF |
5,641 | - |
|
Datasheet | - | SQ-MELF, B | Tape & Reel (TR) | Active | Standard | 150 V | 6A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 150 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
JAN1N5809US/TRDIODE GP 100V 3A SQ-MELF B |
3,436 | - |
|
Datasheet | - | SQ-MELF, B | Tape & Reel (TR) | Active | Standard | 100 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
JANTX1N5804USDIODE GEN PURP 100V 1A D-5A |
5,110 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | D-5A | -65°C ~ 175°C |
|
|
CD5821DIODE SCHOTTKY 30V 3A DIE |
7,934 | - |
|
Datasheet | - | Die | Tape & Reel (TR) | Active | Schottky | 30 V | 3A | 550 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 30 V | - | - | - | Surface Mount | Die | -65°C ~ 125°C |
|
|
JAN1N5418USDIODE GEN PURP 400V 3A D-5B |
6,340 | - |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | - | Military | MIL-PRF-19500/411 | Surface Mount | D-5B | -65°C ~ 175°C |
|
|
JAN1N5419USDIODE GEN PURP 500V 3A D-5B |
5,898 | - |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 1 µA @ 500 V | - | Military | MIL-PRF-19500/411 | Surface Mount | D-5B | -65°C ~ 175°C |
|

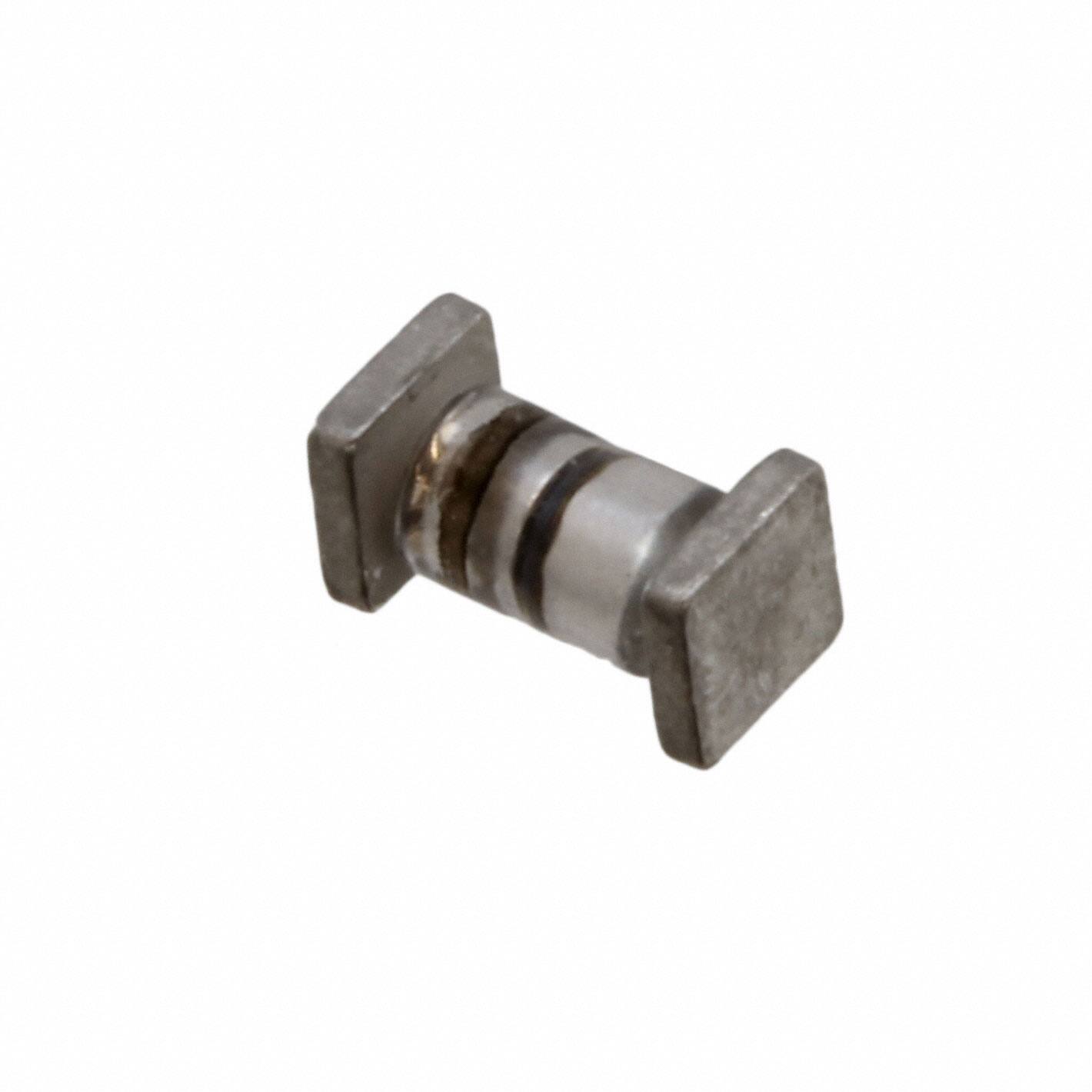

JAN1N5614USDIODE GEN PURP 200V 1A D-5A |
8,469 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 200 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 200 V | - | Military | MIL-PRF-19500/427 | Surface Mount | D-5A | -65°C ~ 200°C |
|
JAN1N5621USDIODE GEN PURP 800V 1A D-5A |
6,653 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Discontinued at Digi-Key | Standard | 800 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 500 nA @ 800 V | - | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 175°C |
