Thermostats - Mechanical
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Circuit | Switching Temperature | Reset Temperature | Current Rating - AC | Current Rating - DC | Tolerance | Switching Cycles | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F20A095053600060THERMOSTAT 95DEG C SPST-NC 2SIP |
0 |
1+：$2.47000 5+：$2.21700 10+：$2.12250 25+：$2.00960 50+：$1.93270 100+：$1.86215 500+：$1.72020 1000+：$1.66732 |
|
Datasheet | F20 | 2-SIP, Potted | Tube | Active | SPST-NC | 203°F (95°C) | 149°F (65°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
F20A07505ACFA06ETHERMOSTAT 75DEG C SPST-NC WIRE |
2,589 | - |
|
Datasheet | F20 | Potted - Wire Leads | Bulk | Active | SPST-NC | 167°F (75°C) | 113°F (45°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|
|
F20A07005ACFA06ETHERMOSTAT 70DEG C SPST-NC WIRE |
3,478 |
1+：$2.37500 5+：$2.13100 10+：$2.04050 25+：$1.93240 50+：$1.85830 100+：$1.79050 500+：$1.65404 1000+：$1.60320 |
|
Datasheet | F20 | Potted - Wire Leads | Bulk | Active | SPST-NC | 158°F (70°C) | 104°F (40°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|
|
F20A070053600060THERMOSTAT 70DEG C SPST-NC 2SIP |
1,694 | - |
|
Datasheet | F20 | 2-SIP, Potted | Tube | Active | SPST-NC | 158°F (70°C) | 104°F (40°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20A11505ACFA06ETHERMOSTAT 115DEG C SPST-NC WIRE |
1,465 | - |
|
Datasheet | F20 | Potted - Wire Leads | Bulk | Active | SPST-NC | 240°F (115°C) | 185°F (85°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|
|
F20A09005ACFA06ETHERMOSTAT 90DEG C SPST-NC WIRE |
1,428 | - |
|
Datasheet | F20 | Potted - Wire Leads | Bulk | Active | SPST-NC | 194°F (90°C) | 140°F (60°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|
|
F20A080053600060THERMOSTAT 80DEG C SPST-NC 2SIP |
946 | - |
|
Datasheet | F20 | 2-SIP, Potted | Tube | Active | SPST-NC | 176°F (80°C) | 122°F (50°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20A12005ACFA06ETHERMOSTAT 120DEG C SPST-NC WIRE |
900 | - |
|
Datasheet | F20 | Potted - Wire Leads | Bulk | Active | SPST-NC | 248°F (120°C) | 194°F (90°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|
|
F20A08505ACFA06ETHERMOSTAT 85DEG C SPST-NC WIRE |
761 | - |
|
Datasheet | F20 | Potted - Wire Leads | Bulk | Active | SPST-NC | 185°F (85°C) | 131°F (55°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|
|
F20A11005ACFA06ETHERMOSTAT 110DEG C SPST-NC WIRE |
589 | - |
|
Datasheet | F20 | Potted - Wire Leads | Bulk | Active | SPST-NC | 230°F (110°C) | 176°F (80°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|
|
F20A08005ACFA06ETHERMOSTAT 80DEG C SPST-NC WIRE |
447 | - |
|
Datasheet | F20 | Potted - Wire Leads | Bulk | Active | SPST-NC | 176°F (80°C) | 122°F (50°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|
F20A070051ZA0060THERMOSTAT 70DEG C SPST-NC 2SIP |
398 | - |
|
Datasheet | F20 | 2-SIP, Potted | Bulk | Active | SPST-NC | 158°F (70°C) | 104°F (40°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads | Through Hole |
|
|
F20A075053600060THERMOSTAT 75DEG C SPST-NC 2SIP |
291 | - |
|
Datasheet | F20 | 2-SIP, Potted | Tube | Active | SPST-NC | 167°F (75°C) | 113°F (45°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20A10005ACFA06ETHERMOSTAT 100DEG C SPST-NC WIRE |
103 | - |
|
Datasheet | F20 | Potted - Wire Leads | Bulk | Active | SPST-NC | 212°F (100°C) | 158°F (70°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|

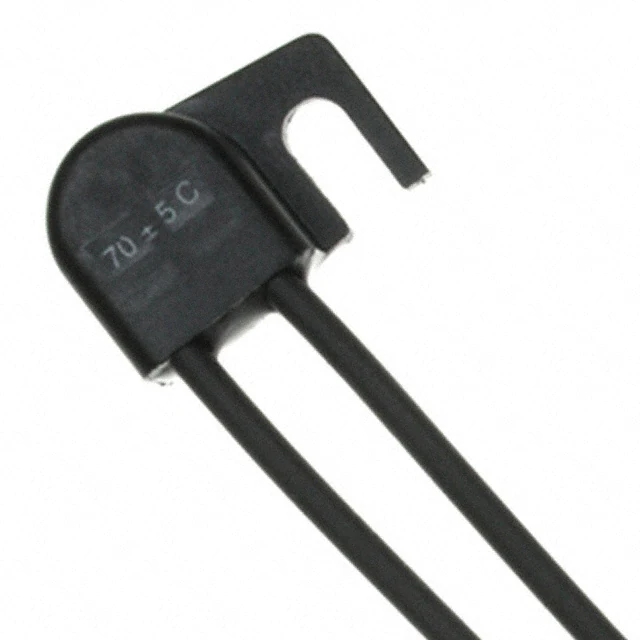

B12A07005AEDA0GETHERMOSTAT 70DEG C SPST-NC RAD |
3,679 | - |
|
Datasheet | B12 | Radial | Bag | Active | SPST-NC | 158°F (70°C) | 104°F (40°C) | 6A (250V) | - | ±9°F (±5°C) | 1K | Wire Leads - 4" (101.6mm) | Through Hole |
|

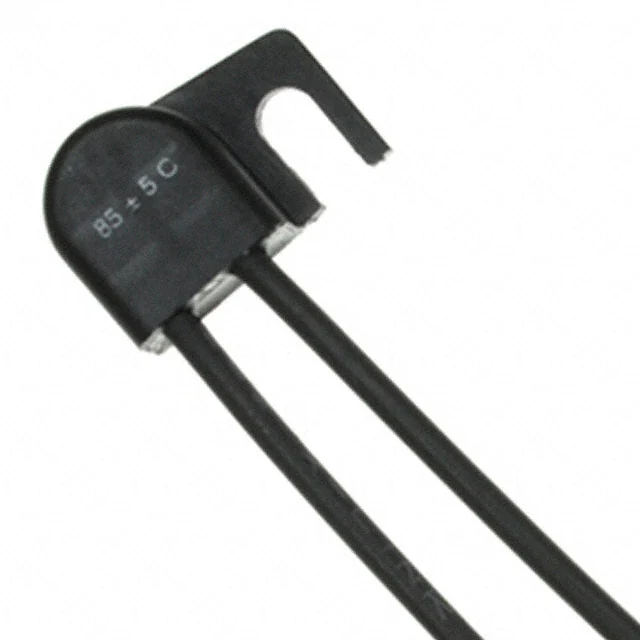

B12A08505AEDA0GETHERMOSTAT 85DEG C SPST-NC RAD |
1,619 |
1+：$2.63000 5+：$2.36200 10+：$2.26250 25+：$2.14340 50+：$2.06200 100+：$1.98735 500+：$1.83716 1000+：$1.78119 |
|
Datasheet | B12 | Radial | Bag | Active | SPST-NC | 185°F (85°C) | 131°F (55°C) | 6A (250V) | - | ±9°F (±5°C) | 1K | Wire Leads - 4" (101.6mm) | Through Hole |
|

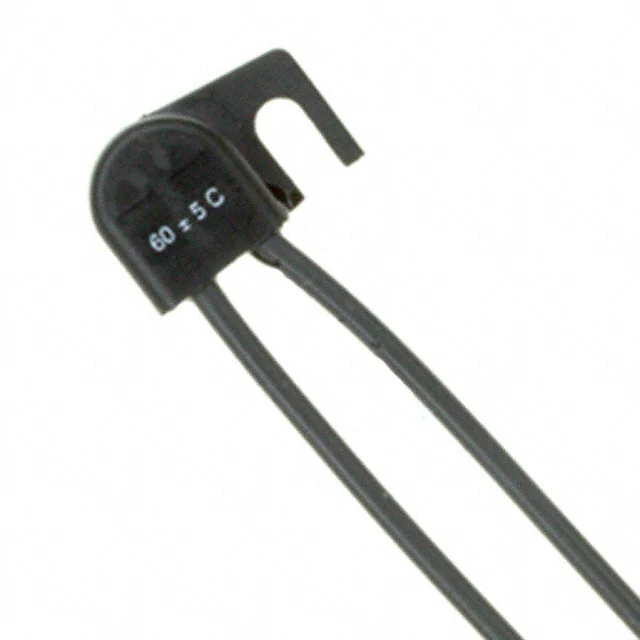

B12A06005AEDA0GETHERMOSTAT 60DEG C SPST-NC RAD |
761 | - |
|
Datasheet | B12 | Radial | Bag | Active | SPST-NC | 140°F (60°C) | 86°F (30°C) | 6A (250V) | - | ±9°F (±5°C) | 1K | Wire Leads - 4" (101.6mm) | Through Hole |
|

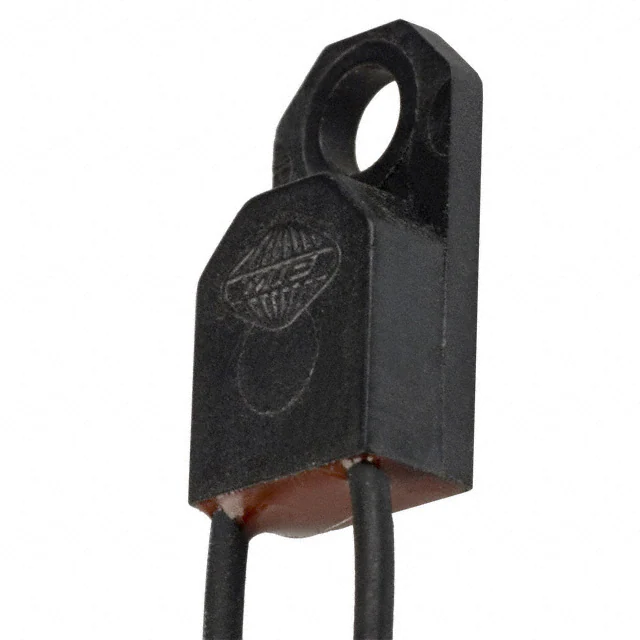

F20B08505ACFA06ETHERMOSTAT 85DEG C SPST-NO WIRE |
1,148 | - |
|
Datasheet | F20 | Potted - Wire Leads | Bulk | Active | SPST-NO | 185°F (85°C) | 131°F (55°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|
|
F20B07005ACFA06ETHERMOSTAT 70DEG C SPST-NO WIRE |
1,354 |
1+：$3.03000 5+：$2.72300 10+：$2.61000 25+：$2.47480 50+：$2.38240 100+：$2.29775 500+：$2.12735 1000+：$2.06388 |
|
Datasheet | F20 | Potted - Wire Leads | Bulk | Active | SPST-NO | 158°F (70°C) | 104°F (40°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|
|
F20B10005ACFA06ETHERMOSTAT 100DEG C SPST-NO WIRE |
380 | - |
|
Datasheet | F20 | Potted - Wire Leads | Bulk | Active | SPST-NO | 212°F (100°C) | 158°F (70°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
