SCRs - Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STS802U2SRP1.5AMP SENSITIVE DUAL SCR IN SOP |
2,598 | - |
|
Datasheet | STS | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Independent - All SCRs | 2 SCRs | 800 V | - | 0.6 A | 800 mV | 100 µA | 20A, 24A | 3 mA | -40°C ~ 125°C (TJ) | - | - | Surface Mount |
|
CMA50P1600FCMOD THYRISTOR DUAL 1600V I4-PAC |
248 | - |
|
Datasheet | - | i4-Pac™-5 | Tube | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 50 A | 79 A | 1.4 V | 80 mA | 720A, 780A | 100 mA | -40°C ~ 150°C (TJ) | - | - | Through Hole |
|
MCO50-16IO1SCR MODULE 1.6KV 85A SOT-227-4 |
90 |
1+：$18.06000 10+：$13.35550 100+：$11.21250 |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | Single | 1 SCR | 1.6 kV | 54 A | 85 A | 1.4 V | 80 mA | 740A, 800A | 100 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
STTD6050H-12M2Y60 A 1200 V HALF-CONTROLLED BRID |
289 | - |
|
Datasheet | - | 9-PowerSMD | Tape & Reel (TR) | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | 38 A | 60 A | 1.3 V | 50 mA | 500A, 525A | 100 mA | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount |
|
|
MCO100-16IO1SCR MODULE 1.6KV 156A SOT-227-4 |
73 |
1+：$21.63500 10+：$16.17200 100+：$14.04055 |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | Single | 1 SCR | 1.6 kV | 99 A | 156 A | 1.5 V | 100 mA | 1400A, 1500A | 200 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
PGH75N16THYRISTOR MODULE 3PHASE LEG T+D |
3,699 | - |
|
Datasheet | - | Module | Bulk | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 75 A | - | 2.5 V | 100 mA | 1200A @ 50Hz | 80 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
F1892DH600SCR MODULE 600V MODULE |
24 |
1+：$81.88000 10+：$77.98000 50+：$74.43540 |
|
Datasheet | F18 | Module | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 600 V | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MS0690J-DL1TETHYRISTOR MODULE 600V 90A SOT227 |
148 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | 1-Phase Controller - All SCRs | 2 SCRs | 600 V | 64 A | 90 A | 1.6 V | 50 mA | 950A @ 60Hz | 80 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
MT130C16T2-BPSCR MODULE 1.6KV T2 |
0 |
1+：$50.55000 10+：$39.49150 100+：$35.41620 |
|
Datasheet | - | T2 | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 130 A | - | 3 V | 150 mA | 4700A @ 50Hz | 400 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
T621FMODULE POWER |
5,385 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TTB6C95N16LOFPHASE CONTROL THYRISTOR MODULE |
236 | - |
|
Datasheet | - | Module | Bulk | Active | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.6 kV | 130 A | 75 A | 2.5 V | 150 mA | 720A @ 50Hz | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
TTW3C115N16LOFHOSA1PHASE CONTROL THYRISTOR MODULE |
381 | - |
|
Datasheet | - | Module | Bulk | Active | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.6 kV | - | 75 A | 2.5 V | 150 mA | 720A @ 50Hz | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
|
F1842HD1000SCR MODULE 1KV MODULE |
0 |
10+：$68.05550 |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1 kV | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
M505013FMODULE POWER 50A 800V SCR CC |
4,408 | - |
|
Datasheet | M50 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 800 V | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1857SDK600SCR MODULE 600V MODULE |
60 |
10+：$70.01550 |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1842HD1200SCR MODULE 1.2KV MODULE |
98 |
5+：$79.41000 10+：$75.62550 |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1892HD600SCR MODULE 600V MODULE |
113 |
1+：$79.10000 5+：$75.80000 9+：$72.77000 41+：$69.86000 |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 600 V | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TTB6C95N12LOF_B1BRIDGE RECTIFIER & AC-SWITCHES |
206 |
2+：$77.96500 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

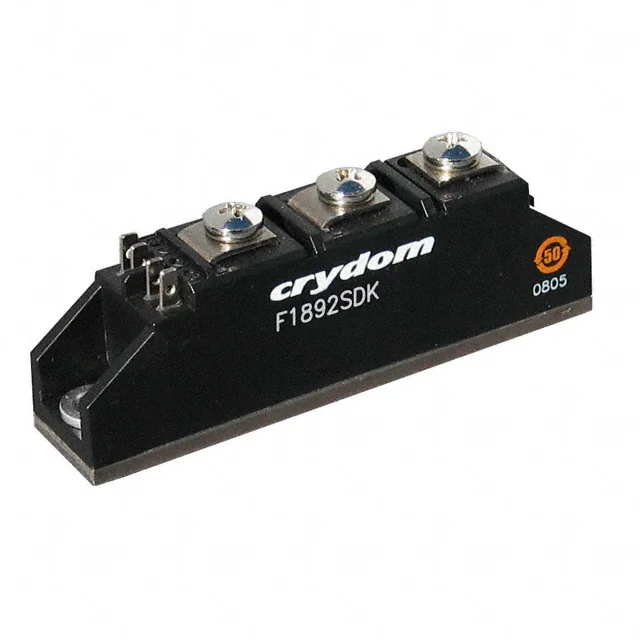

F1892SDK600MODULE SCR/DIODE 90A 240VAC |
2,662 | - |
|
Datasheet | F18 | Module | Bulk | Not For New Designs | Series Connection - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TTW3C145N16LOFPHASE CONTROL THYRISTOR MODULE |
2,109 | - |
|
Datasheet | - | Module | Bulk | Active | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.4 kV | - | 120 A | 2.5 V | 150 mA | 12500A | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
