ELECTRONIC COMPONENTS
SCRs - Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

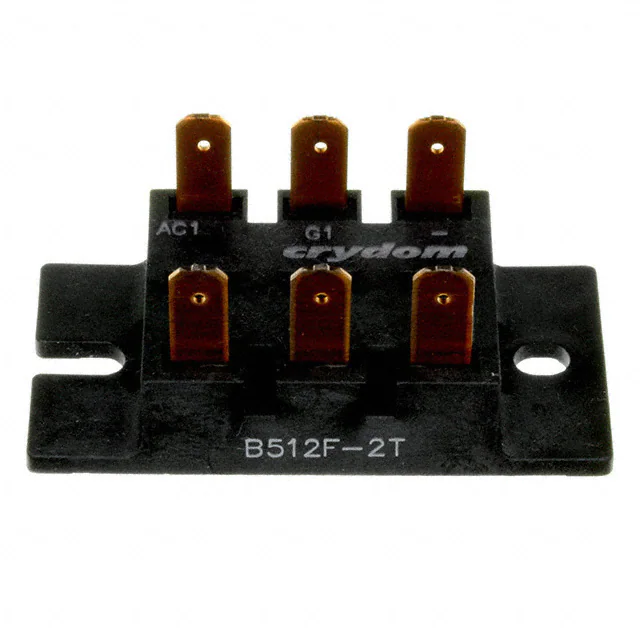

B512F-2TMOD DIODE SCR 25A 240VAC .250"QC |
2,952 | - |
|
Datasheet | B-2T | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

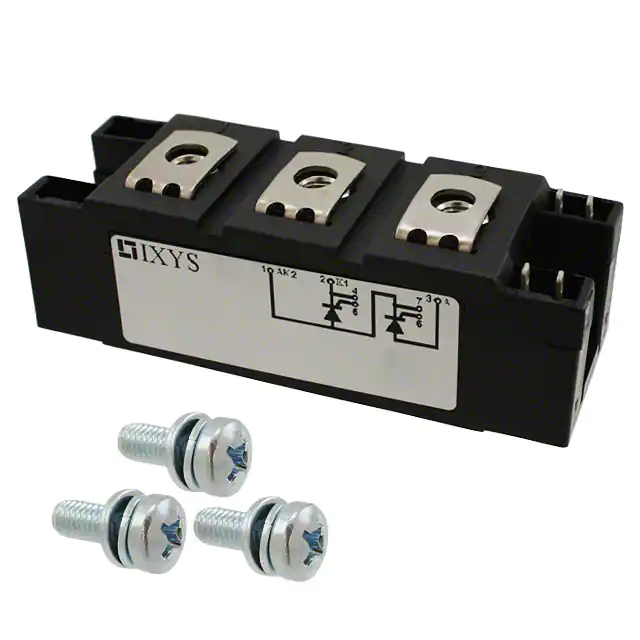

MCD162-16IO1MOD THYRISTOR/DIODE 1600V Y4-M6 |
3,084 | - |
|
Datasheet | - | Y4-M6 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 190 A | 300 A | 2.5 V | 150 mA | 6000A, 6400A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B512F-2-YECMOD DIODE SCR 25A 240VAC ISO QC |
1,720 | - |
|
Datasheet | B-2 | Module with Isolation Barriers | Bulk | Not For New Designs | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B614F-2TMOD DIODE SCR 42.5A 480V .250"QC |
2,813 | - |
|
Datasheet | B-2T | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

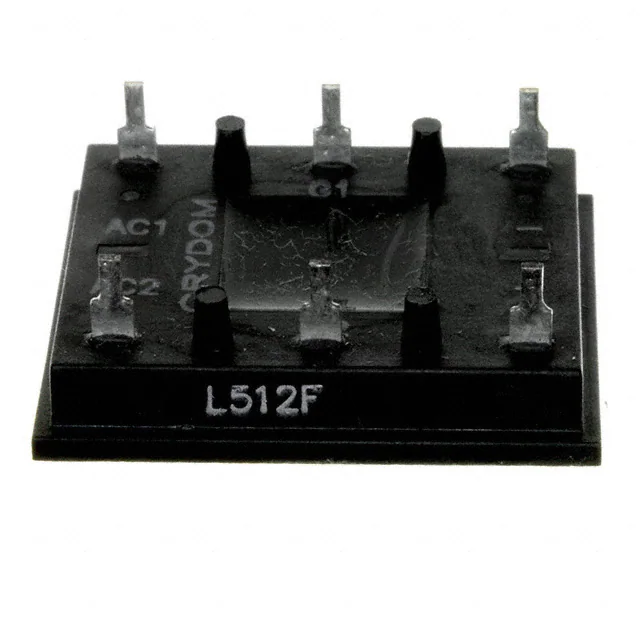

L512FMODULE SCR/DIODE 25A 240VAC PCB |
2,560 | - |
|
Datasheet | L | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 100 mA | 300A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Through Hole |
|
T390N16TOFXPSA1SCR MODULE 1600V 600A DO200AA |
2,233 | - |
|
Datasheet | - | TO-200AA | Tray | Active | Single | 1 SCR | 1.6 kV | 381 A | 600 A | 2 V | 150 mA | 4900A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|

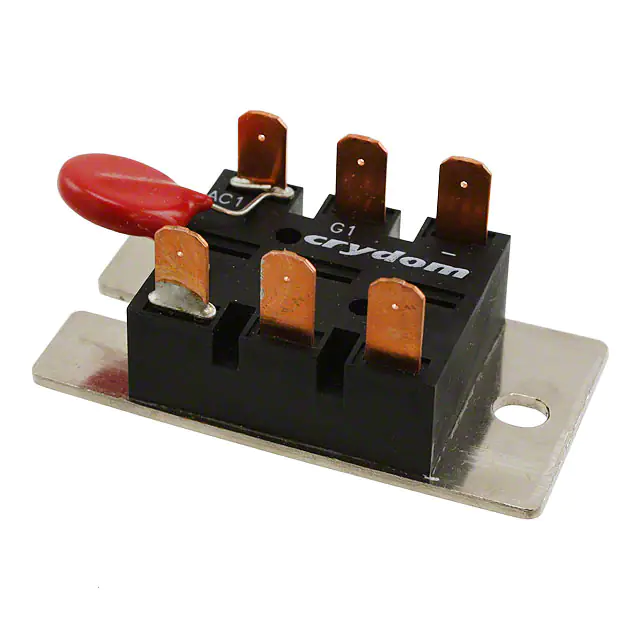

M252515FVMODULE POWER 25A 1200V SCR CC |
3,135 | - |
|
Datasheet | - | Module | Bulk | Not For New Designs | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 2.5 V | 50 mA | 300A @ 60Hz | 75 mA | - | - | - | Chassis Mount |
|

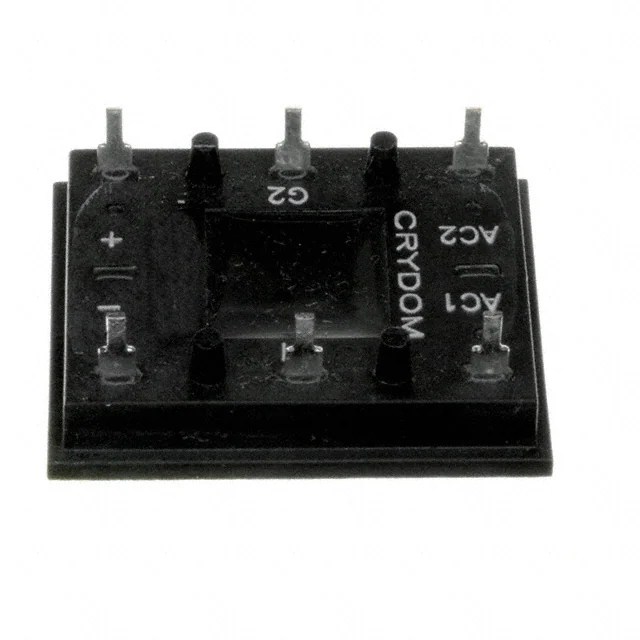

L513FMODULE SCR/DIODE 25A 280VAC PCB |
2,632 | - |
|
Datasheet | L | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 800 V | - | - | 3 V | 100 mA | 300A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Through Hole |
|

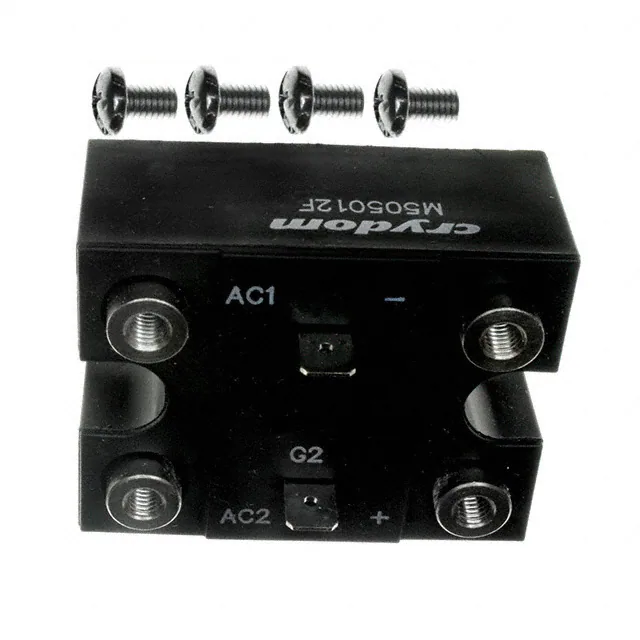

M505012FMODULE POWER 50A 600V SCR DIODE |
3,821 | - |
|
Datasheet | M50 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TD92N16KOFHPSA1SCR MODULE 1.6KV 160A MODULE |
2,474 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 104 A | 160 A | 1.4 V | 120 mA | 2050A @ 50Hz | 200 mA | -40°C ~ 130°C | - | - | Chassis Mount |
|
T560N16TOFXPSA1SCR MODULE 1800V 809A DO200AA |
4,053 | - |
|
Datasheet | - | DO-200AA, A-PUK | Tray | Active | Single | 1 SCR | 1.8 kV | 559 A | 809 A | 2 V | 200 mA | 8000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
|
TDB6HK180N16RRBPSA1LOW POWER ECONO AG-ECONO2B-411 |
4,446 | - |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Active | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode | 3 SCRs, 3 Diodes | 1.6 kV | - | - | 2 V | 100 mA | 1600A @ 50Hz | 220 mA | 175°C (TJ) | - | - | Chassis Mount |
|
|
TDB6HK180N16RRB11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
4,781 | - |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Active | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode | 3 SCRs, 3 Diodes | 1.6 kV | - | - | 2 V | 100 mA | 1600A @ 50Hz | 220 mA | 175°C (TJ) | - | - | Chassis Mount |
|
|
TT162N14KOFHPSA2THYR / DIODE MODULE DK |
1,501 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 162 A | 260 A | 2 V | 150 mA | 5200A @ 50Hz | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC310-18IO1THYRISTOR DIODE MODULE |
2,181 | - |
|
Datasheet | - | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 320 A | 500 A | 2 V | 150 mA | 9200A, 9800A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
T830N16TOFXPSA1SCR MODULE 1800V 1500A DO200AB |
3,988 | - |
|
Datasheet | - | DO-200AB, B-PUK | Tray | Active | Single | 1 SCR | 1.8 kV | 844 A | 1500 A | 1.5 V | 250 mA | 14500A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
|
|
TD180N16KOFHPSA2THYR / DIODE MODULE DK |
1,481 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 180 A | 285 A | 2 V | 150 mA | 4800A @ 50Hz | 200 mA | 130°C (TJ) | - | - | Chassis Mount |
|
TT250N18KOFHPSA1SCR MODULE 1.8KV 250A MODULE |
1,968 | - |
|
Datasheet | - | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 250 A | - | 2 V | 200 mA | 8000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TD330N16KOFHPSA2THYRISTOR MODULE 1600V 330A |
2,478 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 330 A | 520 A | 2 V | 200 mA | - | 300 mA | 130°C (TJ) | - | - | Chassis Mount |
|
TZ600N16KOFHPSA1THYRISTOR MODULE 1600V 600A |
4,041 | - |
|
Datasheet | - | Module | Bulk | Active | Series Connection - All SCRs | 1 SCR | 1.6 kV | 669 A | 1050 A | 2.2 V | 250 mA | - | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
