ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASDXL10D44D-DOSENSOR 0.36PSIC 0.09" 12BIT |
3,199 | - |
|
Datasheet | ASDXL | 8-DIP Module | Tube | Obsolete | Board Mount | Compound | 0.36PSI (2.49kPa) | I2C | 12 b | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
1865-03G-KDNSENSOR 15PSIG 7.5V |
3,517 | - |
|
Datasheet | 1865 | 8-DIP Module | Tray | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 V ~ 7.5 V | ±0.25% | 15V | - | No Port | Temperature Compensated | - | 45PSI (310.26kPa) | -28°C ~ 54°C | - | - | Through Hole | - |
|
|
1865-07G-LDNSENSOR 30PSIG .04V |
2,988 | - |
|
Datasheet | 1865 | 8-DIP Module | Tray | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 40 mV | ±0.25% | - | - | No Port | Temperature Compensated | - | 60PSI (413.69kPa) | -28°C ~ 54°C | - | - | Through Hole | - |
|
40PC001B1ASENSOR 0.97PSIC 0.18" 6.5V |
3,390 | - |
|
Datasheet | 40PC | 6-DIP Module | Tube | Active | Board Mount | Compound | ±0.97PSI (±6.69kPa) | Analog Voltage | 2.5 V ~ 6.5 V | ±0.8% | 4.75V ~ 5.25V | Male - 0.18" (4.57mm) Tube | Barbless | Amplified Output | PC Pin | ±3.29PSI (±22.68kPa) | -45°C ~ 125°C | - | - | Through Hole | - |
|
40PC015V3ASENSOR 15PSI 0.18" 4.5V |
2,988 | - |
|
Datasheet | 40PC | 6-DIP Module | Tube | Obsolete | Board Mount | Vacuum | -15PSI (-103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2.25% | 4.75V ~ 5.25V | Male - 0.18" (4.57mm) Tube | Barbless | Amplified Output | PC Pin | -15PSI (-103.42kPa) | -45°C ~ 125°C | - | - | Through Hole | - |
|
CPC0.3DFHSENSOR 0.3PSID 0.16" .02V |
3,769 | - |
|
Datasheet | CPC | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.3PSI (2.07kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±2% | 3V ~ 16V | Male - 0.16" (4.06mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
CPC0.3GFHSENSOR 0.3PSIG 0.15" .02V |
4,882 | - |
|
Datasheet | CPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 0.3PSI (2.07kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15" (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
CPC01DFCSENSOR 1PSID 0.16" .018V |
4,102 | - |
|
Datasheet | CPC | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±2% | 3V ~ 16V | Male - 0.16" (4.06mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
CPC01GFHSENSOR 1PSIG 0.15" .018V |
4,866 | - |
|
Datasheet | CPC | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15" (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

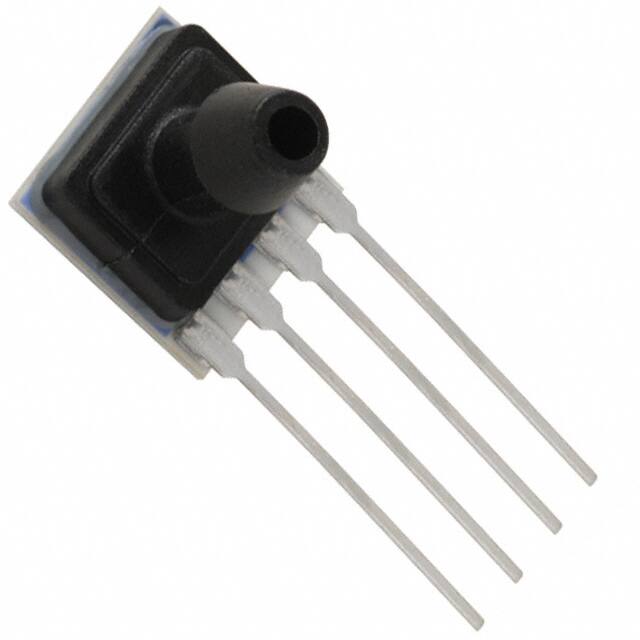

CPC05GFCSENSOR 5PSIG 0.15" .06V |
3,025 | - |
|
Datasheet | CPC | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15" (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 15PSI (103.42kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
