ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DUXL10DSENSOR 0.36PSID 0.08" .03V |
2,208 | - |
|
Datasheet | DUXL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 3V ~ 8V | Male - 0.08" (2.03mm) Tube, Dual | Barbed | - | PC Pin | 5.42PSI (37.38kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
DUXL20DSENSOR 0.72PSID 0.08" .03V |
2,636 | - |
|
Datasheet | DUXL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.72PSI (4.98kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 3V ~ 8V | Male - 0.08" (2.03mm) Tube, Dual | Barbed | - | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
SCC15ASMTSENSOR 15PSIA .095V |
1,555 | - |
|
Datasheet | SCC SMT | 8-SMD Module | Tube | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 40 mV ~ 95 mV | ±0.005% | - | - | No Port | Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
SCC30ASMTSENSOR 30PSIA .15V |
2,869 | - |
|
Datasheet | SCC SMT | 8-SMD Module | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | ±0.005% | - | - | No Port | Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

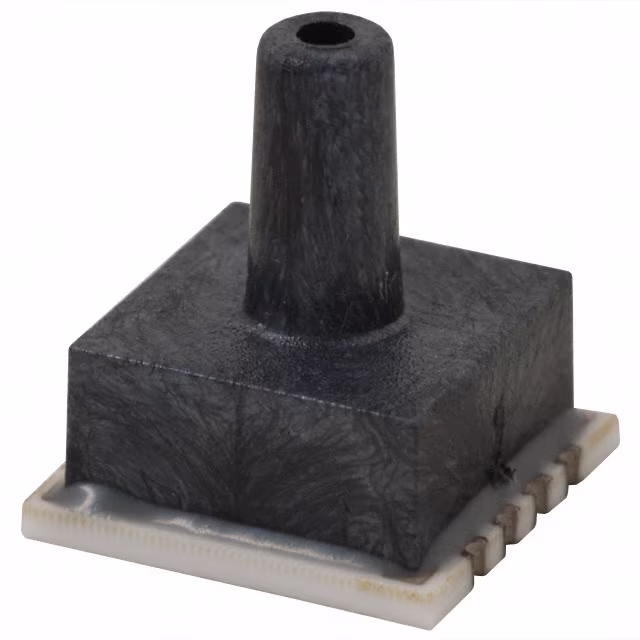

SCCP100GSMTPSENSOR 100PSIG 0.08" .225V |
4,679 | - |
|
Datasheet | SCC SMT | 8-SMD Module | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 85 mV ~ 225 mV | ±1% | - | Male - 0.08" (2.05mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
SCCP15ASMTLPSENSOR 15PSIA 0.09" .095V |
1,788 | - |
|
Datasheet | SCC SMT | 8-SMD Module | Tube | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 40 mV ~ 95 mV | ±1% | - | Male - 0.09" (2.29mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

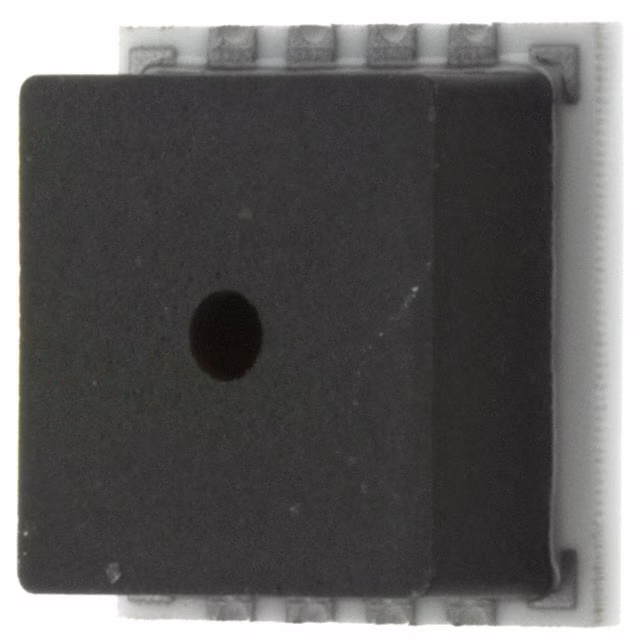

SX150ASMTSENSOR 150PSIA .105V |
1,904 | - |
|
Datasheet | SX SMT | 8-SMD Module | Tube | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.5% | 12V | - | No Port | - | SMD (SMT) Tab | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
XPC01GTCSENSOR 1PSIG 0.19" .018V |
3,156 | - |
|
Datasheet | XPC | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
XPC150GTCSENSOR 150PSIG 0.19" .09V |
1,070 | - |
|
Datasheet | XPC | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
XPC15ATCSENSOR 15PSIA 0.19" .09V |
2,880 | - |
|
Datasheet | XPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 3V ~ 16V | Male - 0.19" (4.83mm) Tube | Barbed | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
