ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPC05GFHSENSOR 5PSIG 0.15" .06V |
3,527 | - |
|
Datasheet | CPC | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15" (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 15PSI (103.42kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
CPC15AFHSENSOR 15PSIA 0.15" .09V |
3,559 | - |
|
Datasheet | CPC | 4-SIP Module | Tube | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15" (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
CPC15AHSENSOR 15PSIA .09V |
2,215 | - |
|
Datasheet | CPC | 4-SIP Module | Tube | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | - | No Port | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
CPCL04DFCSENSOR 0.15PSID 0.16" .025V |
3,399 | - |
|
Datasheet | CPCL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±2% | 3V ~ 16V | Male - 0.16" (4.06mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
CPCL04GFCSENSOR 0.15PSIG 0.15" .025V |
1,350 | - |
|
Datasheet | CPCL | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15" (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
CPCL10DFCSENSOR 0.36PSID 0.16" .02V |
3,553 | - |
|
Datasheet | CPCL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±2% | 3V ~ 16V | Male - 0.16" (4.06mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
CPCL10GFCSENSOR 0.36PSIG 0.15" .02V |
4,716 | - |
|
Datasheet | CPCL | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15" (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
CPX15AFSENSOR 15PSIA 0.15" .253V |
3,923 | - |
|
Datasheet | CPX | 4-SIP Module | Tube | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 253 mV (5V) | ±2% | 3V ~ 12V | Male - 0.15" (3.8mm) Tube | Barbed | - | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

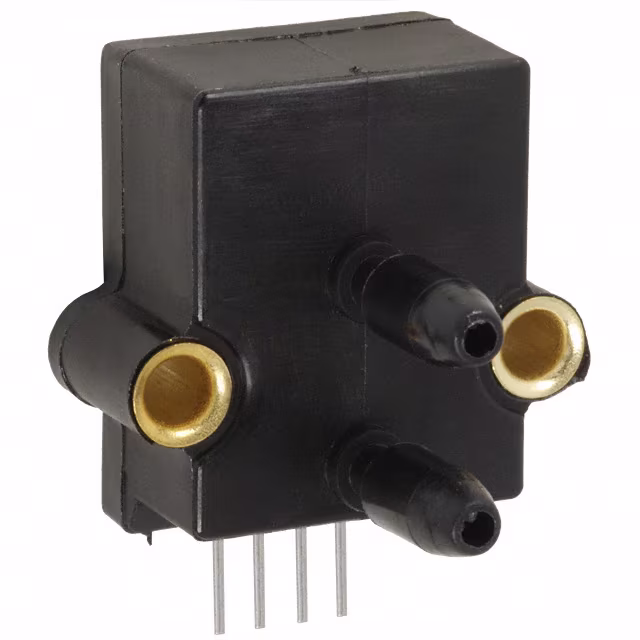

DC001NDC4SENSOR 0.04PSID 0.19" 4.25V |
4,468 | - |
|
Datasheet | DC | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.04PSI (0.25kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 5V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.61PSI (24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
DC002NDC4SENSOR 0.07PSID 0.19" 4.25V |
1,569 | - |
|
Datasheet | DC | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.07PSI (0.5kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 5V | Male - 0.19" (4.83mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.61PSI (24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
BOM & COMPONENT SOURCING
Need Pricing or Stock Support for Pressure Sensors, Transducers?
Submit your required part numbers, manufacturers and quantities to receive stock availability, pricing, lead-time and sourcing support. Our team assists with active components, shortage parts, obsolete models and one-stop BOM procurement.
