ELECTRONIC COMPONENTS
SCRs - Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B514F-2TMOD DIODE SCR 25A 480VAC .250"QC |
3,073 | - |
|
Datasheet | B-2T | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B513F-2MOD DIODE SCR 25A 280VAC ISO QC |
4,997 | - |
|
Datasheet | B-2 | Module with Isolation Barriers | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 800 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B582-2TTHYRISTOR MODULE |
1,751 | - |
|
Datasheet | B-2T | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
L431MODULE BRIDGE RECT SLG PHASE 30A |
7,516 | - |
|
Datasheet | L | Module | Bulk | Not For New Designs | Bridge, Single Phase - SCRs/Diodes (Layout 3) | 2 SCRs, 2 Diodes | 600 V | 100 A | 22 A | 2.5 V | 100 mA | - | 100 mA | -40°C ~ 125°C (TJ) | - | - | - |
|
|
B614-2TMOD DIODE SCR 42.5A 480V .250"QC |
4,593 | - |
|
Datasheet | B-2T | Module with Isolation Barriers | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
B514FSE-2TMOD DIODE SCR 25A 480VAC .250"QC |
1,389 | - |
|
Datasheet | B-2T | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
T542-YEBMODULE POWER |
6,414 | - |
|
Datasheet | - | Module | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

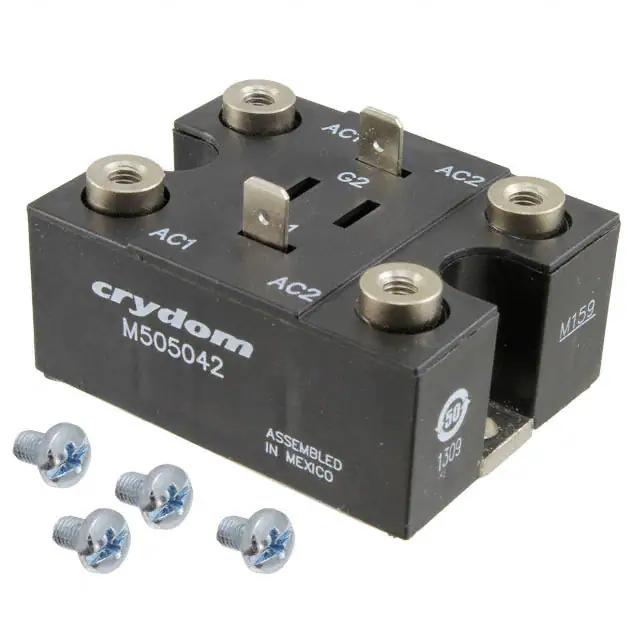

M505042MODULE POWER 50A 600V AC SWITCH |
8,293 | - |
|
Datasheet | M50 | Module | Bulk | Obsolete | 1-Phase Controller - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T511FMODULE POWER |
4,224 | - |
|
Datasheet | - | Module | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B574-2TMOD DIODE SCR 25A 480VAC .250"QC |
2,240 | - |
|
Datasheet | B-2T | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
