ELECTRONIC COMPONENTS
SCRs - Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1892SD1000MODULE SCR/DIODE 90A 380VAC |
7,077 | - |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1 kV | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
M5010013VM SERIES POWER MODULE |
4,747 | - |
|
Datasheet | M50 | Module | Bulk | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 800 V | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1892CCH1600MODULE SCR/DIODE 90A 600VAC |
6,551 | - |
|
Datasheet | F18 | Module | Bulk | Obsolete | Common Cathode - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
M50100TB600POWER MODULE DIODE M SERIES |
3,737 | - |
|
Datasheet | M50 | Module | - | Active | Bridge, Single Phase - SCRs/Diodes (Layout 2) | 2 SCRs, 2 Diodes | 600 V | - | 50 A | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

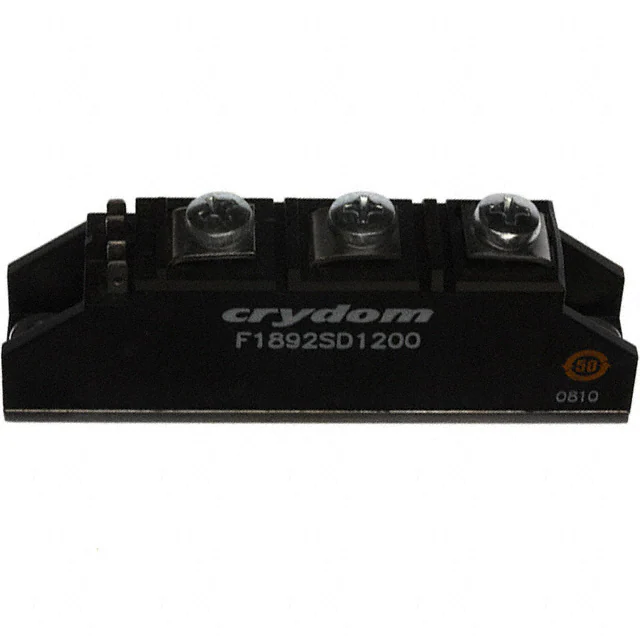

F1892SD1200MODULE SCR/DIODE 90A 480VAC |
9,507 | - |
|
Datasheet | F18 | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B512-2T-YDAMOD DIODE SCR 25A 240VAC .250"QC |
4,975 | - |
|
Datasheet | B-2T | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

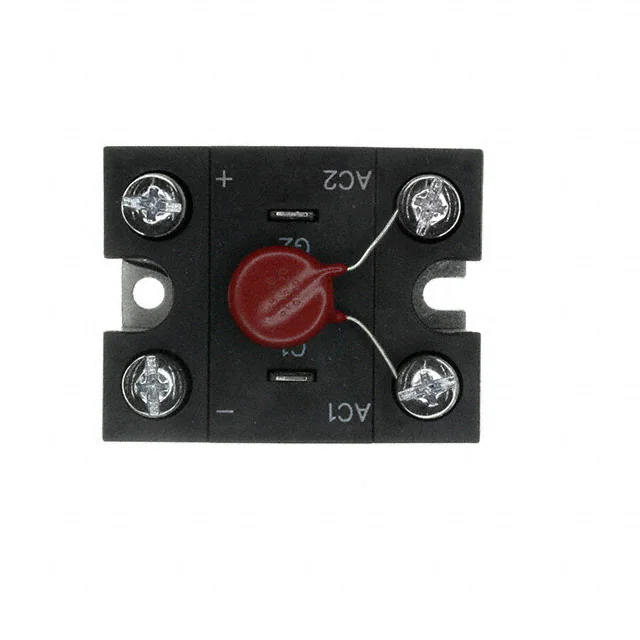

M505012FVMODULE POWER 50A 600V SCR DIODE |
2,971 | - |
|
Datasheet | M50 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
M5010012FMODULE POWER 100A 600V SCR CC |
6,927 | - |
|
Datasheet | M50 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

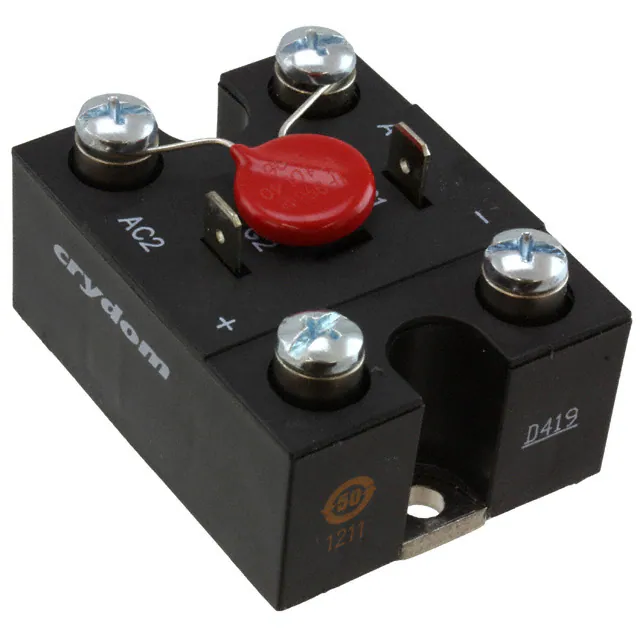

M5010015VMODULE POWER 100A 1200V SCR CC |
9,595 | - |
|
Datasheet | M50 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
B554-2MOD DIODE SCR 25A 480VAC ISO QC |
6,547 | - |
|
Datasheet | B-2 | Module with Isolation Barriers | Bulk | Active | 1-Phase Controller - All SCRs | 2 SCRs | 1.2 kV | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
